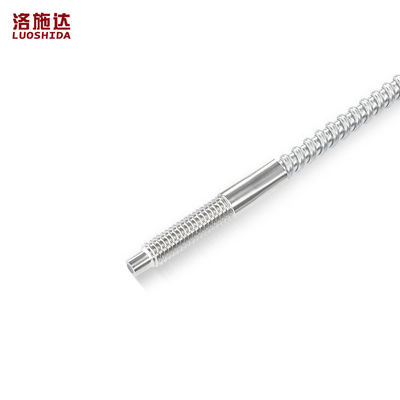

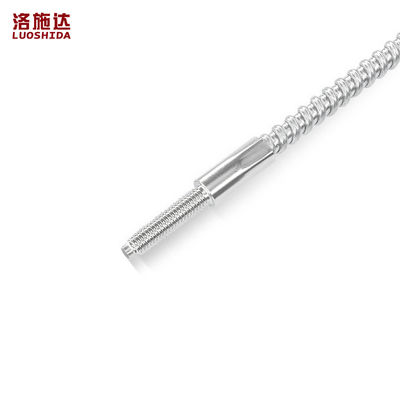

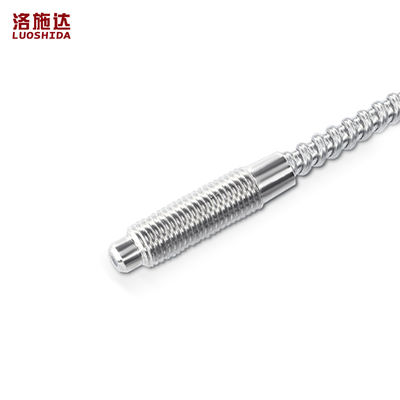

M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor

प्रमाणन
चीन Luo Shida Sensor (Dongguan) Co., Ltd. प्रमाणपत्र
चीन Luo Shida Sensor (Dongguan) Co., Ltd. प्रमाणपत्र
मैं अब ऑनलाइन चैट कर रहा हूँ

M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor

M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor
M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor

बड़ी छवि :  M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor

उत्पाद विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: Luoshida
प्रमाणन: CE RoHS
मॉडल संख्या: M3 उच्च तापमान प्रतिरोधी ऑप्टिकल फाइबर सेंसर
भुगतान & नौवहन नियमों:
न्यूनतम आदेश मात्रा: 5
मूल्य: negotiable
पैकेजिंग विवरण: सामान्य मानक: लेबल के साथ अलग-अलग पैकेज और बाहर सामान्य भूरे रंग का बॉक्स होता है।
प्रसव के समय: 5-8 कार्य दिवस
भुगतान शर्तें: एल/सी, डी/ए, डी/पी, टी/टी
आपूर्ति की क्षमता: प्रति माह 3000pcs

M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor

वर्णन
प्रोडक्ट का नाम: ऑप्टिकल फाइबर सेंसर संवेदन दूरी: 90मिमी±10%
विश्वसनीय संवेदन दूरी: 0-72मिमी न्यूनतम पहचान वस्तु: φ0.1
न्यूनतम झुकने त्रिज्या: R25 प्रमाणन: CE RoHS

M3 High temperature resistant optical fiber sensor diffuse reflection(350°)
Size M3*22.7
Sensing distance 90mm±10%
Reliable sensing distance 0-72mm
Standard detection object 200*200mm White card
Fiber opticcable length 1M 2M
Temperature resistance -55+350
Model without convex tube RSG310S RSG320S
Fiber materal Glass
Fiber core size Fiber coreφ1.5*1
Fiber outer diameter φ3.5
Minimum bending radius R25
Minimum detection object φ0.1
Fiber tube material Stainless steel
Weight About 23.8g About 41.5g
Certification CE


M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor 0M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor 1



Company Profile
M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor 2M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor 3M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor 4M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor 5M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor 6M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor 7M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor 8

FAQ


Relevant information about the service :

Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.

Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
